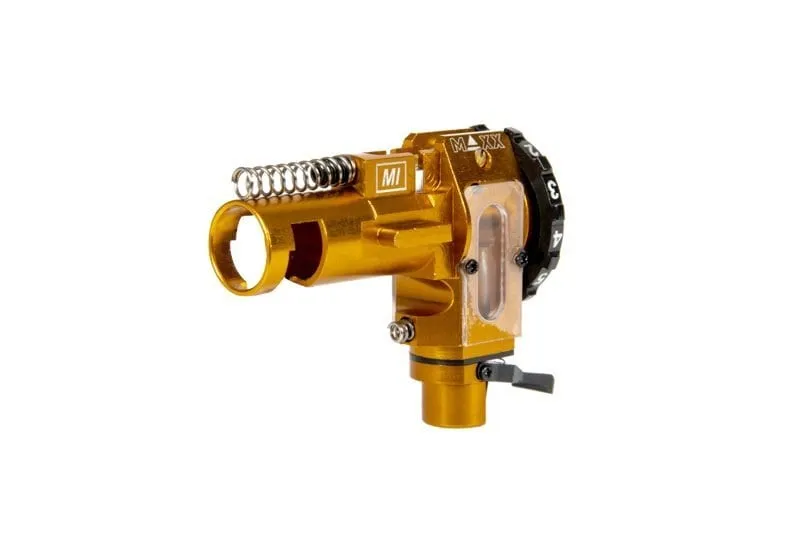

+MI CNC Aluminum HopUp Chamber PRO
A highest quality HopUp chamber intended for tuning of / M16 ICS replicas. Rotary chambers by Maxx Model Products are dedicated for the most demanding of players and offer an unparalleled thus far on the market quality of finish as well as perfect operation of the HU system in a replica.
Specification:
- precisely made form a block of aerospace aluminum using CNC technology
- ensured compatibility and tightness with / M16 carbine replicas in ICS standard (CXP / CS4 / EBB as well as older models)
- rotary adjustment knob
- designed from scratch levers and concave nubs that provide issuefree operation with standard buckings and Rhop
- removable brass Slot Pin for configuring and maintenance
- compatible with 21 mm and 21.25 mm long nozzles
- full compatibility with majority of soft and hard HU buckings available on the market maintaining zero FPS drops and without any BBs falling out
- features a special CNC Delrin Locking CClip, that prevents vibrations and movement of the barrel
- equipped with 3 compression springs on top, at the bottom and in the middle of the chamber providing ideal and steady position in the replica
- compatible with every V2 gearbox 11 mm / 11.5 mm bore
- specially designed BB Latching System preventing BBs from falling out once the of the replica has been removed
- openable window that allows for simple taking out the BB from inside the chamber
- possibility of attaching a BB illuminating module (not included in the set)
- possibility of attaching a sensor that stops the motor / HPA engine once the has been emptied (not included in the set)
SPECIFICATION:
- Length: 51 mm
- Height: 38.5 mm
- Hub Outer Diameter (for the gearbox): min 11.5 mm max 12 mm
- Hub Outer Diameter (for the external barrel): min 12 mm
- Hub Inner Diameter (for the nozzle): min 11 mm max 8.3 mm
- Feeder Outer Diameter (for the ): min 11 mm max 9.25 mm
- Feeder Length (for the ): max 6.25 mm
- Material: Aluminum 6061
The set includes:
- 1 x chamber with BB Latching system
- 2 x transparent, vinyl cover
- 1 x aluminum CNC StandardHop arm
- 1 x aluminum CNC RHop arm
- 1 x silicon StandardHop Nub Damper
- 1 x silicon Rubber RHop Nub Damper
- 1 x aluminum, precise CNC Hop Concave Nub 4.5 mm
- 1 x aluminum, precise CNC RHop Concave Nub 6 mm
- 1 x brass, rifled CNC Slot Pin
- 1 x CNC Delrin Locking CClip
- 1 x brass CNC Barrel Spacer
- 1 x brass Oring Spacer Holder
- 3 x steel compression spring
